Olympus CX23 Microscope

KSh190,000.00

Consistently Sharp, Color‑True Imaging — Essential for histological and pathological slides, even at edges of the field.
Efficient Clinic Workflow — LED lighting, inward‑tilted nosepiece for easy specimen changes, and compact footprint streamline lab operations.
Comfort & Safety for Repetitive Use — Ergonomics reduce fatigue; focus limits and safety locks prevent sample damage.
Low Maintenance — LED longevity, anti‑fungus treatments, and durable metal frame keep downtime minimal.
Cost‑Effective Excellence — High‑quality optics and functionality at educational pricing make it budget‑friendly for routine lab deployment.

Categories Laboratory Equipment, Medical Equipment

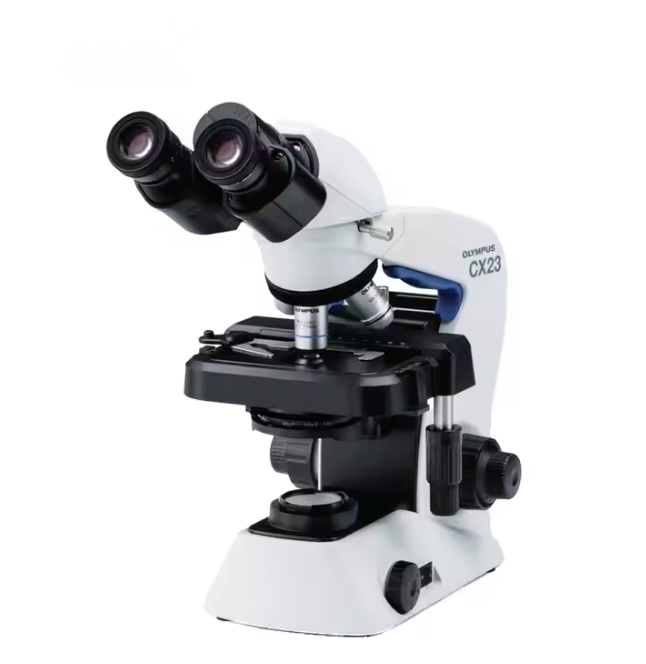

Olympus CX23 Microscope — Ideal for Medical Laboratories

The Olympus CX23 Biological Microscope is a high‑performance,

medical laboratory-grade upright microscope,

optimized for brightfield clinical microscopy and routine diagnostics.

It is especially suited for histology, cytology, microbiology, and pathology sample analysis.

Superior Optical Clarity: Equipped with Plan Achromat objectives (4×, 10×, 40×, 100× oil) and a Field Number (FN) of 20, the CX23 delivers a wide, flat, and high‑contrast field of view.
Reliable LED Illumination: Daylight-balanced, energy-saving 0.5 W LED illumination yields uniform brightness, vivid color reproduction (notably for HE‑stained histological slides), and boasts up to 20,000 hours of service life.
Ergonomic & Robust Design: At approximately 5.9 kg (13 lbs), with angled ergonomic grips, interpupillary (48–75 mm) and eyepoint adjustment, the CX23 supports comfortable prolonged use and easy transport within a medical lab setting.
Safety & Durability Features: Includes anti‑fungal coating on eyepieces and objectives, coaxial coarse/fine focus with torque limit, focus lock, and a built-in security slot for anti‑theft locking.
Educational yet Professional Grade: While designed for classroom and lab training, the CX23 meets rigorous demands of clinical diagnostics, with consistent performance in medical laboratories.

Feature	Specification

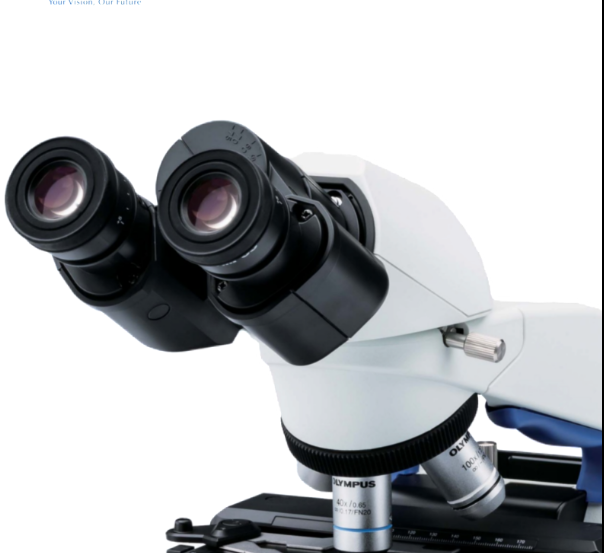

Viewing Head	Binocular, 30° incline, interpupillary 48–75 mm, eyepoint height ~370–433 mm
Eyepieces	Wide-field 10×, FN 20, anti‑fungus coating
Objectives	Plan Achromat 4× (NA 0.10), 10× (NA 0.25), 40× (NA 0.65), 100× oil (NA 1.25)

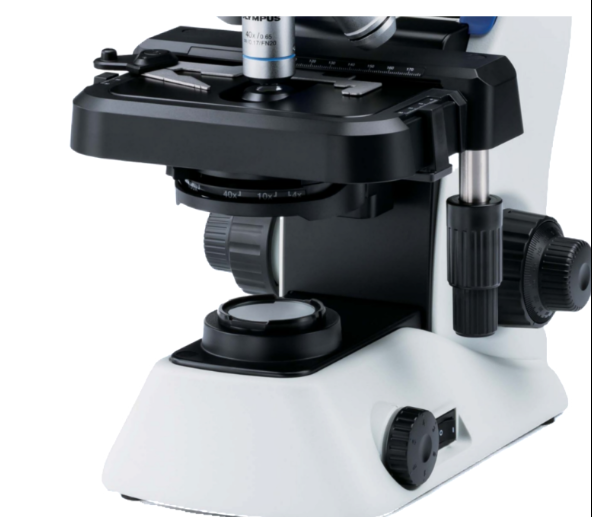

Condenser	Abbe condenser, NA 1.25 with aperture iris diaphragm

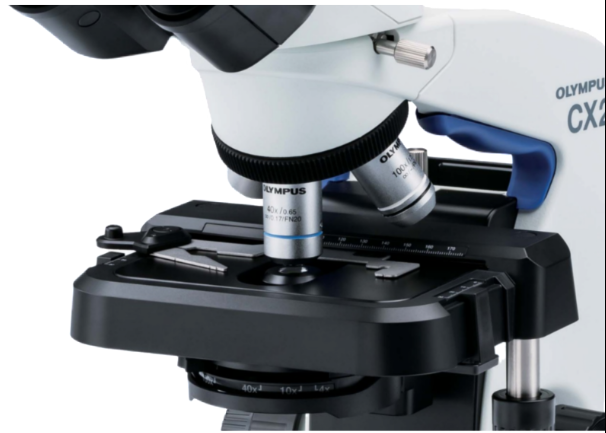

Stage	Rackless mechanical stage, travel 76 × 30 mm, precise wire-driven motion
Focusing Mechanism	Coaxial coarse/fine focus, 15 mm stroke, torque control, focus lock safety
Illumination	Built-in LED, 0.5 W power, long lifetime, adjustable brightness
Weight & Dimensions	~5.9 kg, footprint ~198 × 398 × 386 mm
Warranty	Typically 5-year mechanical, 1‑year electrical warranty
Optional Extras	Trinocular/photo tube; phase contrast, fluorescence modules; Kohler illumination kit

Consistently Sharp, Color‑True Imaging — Essential for histological and pathological slides, even at edges of the field.
Efficient Clinic Workflow — LED lighting, inward‑tilted nosepiece for easy specimen changes, and compact footprint streamline lab operations.
Comfort & Safety for Repetitive Use — Ergonomics reduce fatigue; focus limits and safety locks prevent sample damage.
Low Maintenance — LED longevity, anti‑fungus treatments, and durable metal frame keep downtime minimal.
Cost‑Effective Excellence — High‑quality optics and functionality at educational pricing make it budget‑friendly for routine lab deployment.

🔑 SEO Keywords & Phrases Included

🧪 Sample Application Scenarios

Clinical Diagnostics: HE‑stained histology/cytology slides, blood smears, microbiological cultures.
Medical Training: Ideal for med‑lab technician programs, pathology and clinical microscopy instruction.
Routine Testing Labs: Reliable for urine analysis, smear reading, parasitology.
Portable Field Use: Lightweight enough to move between lab benches or classrooms.
